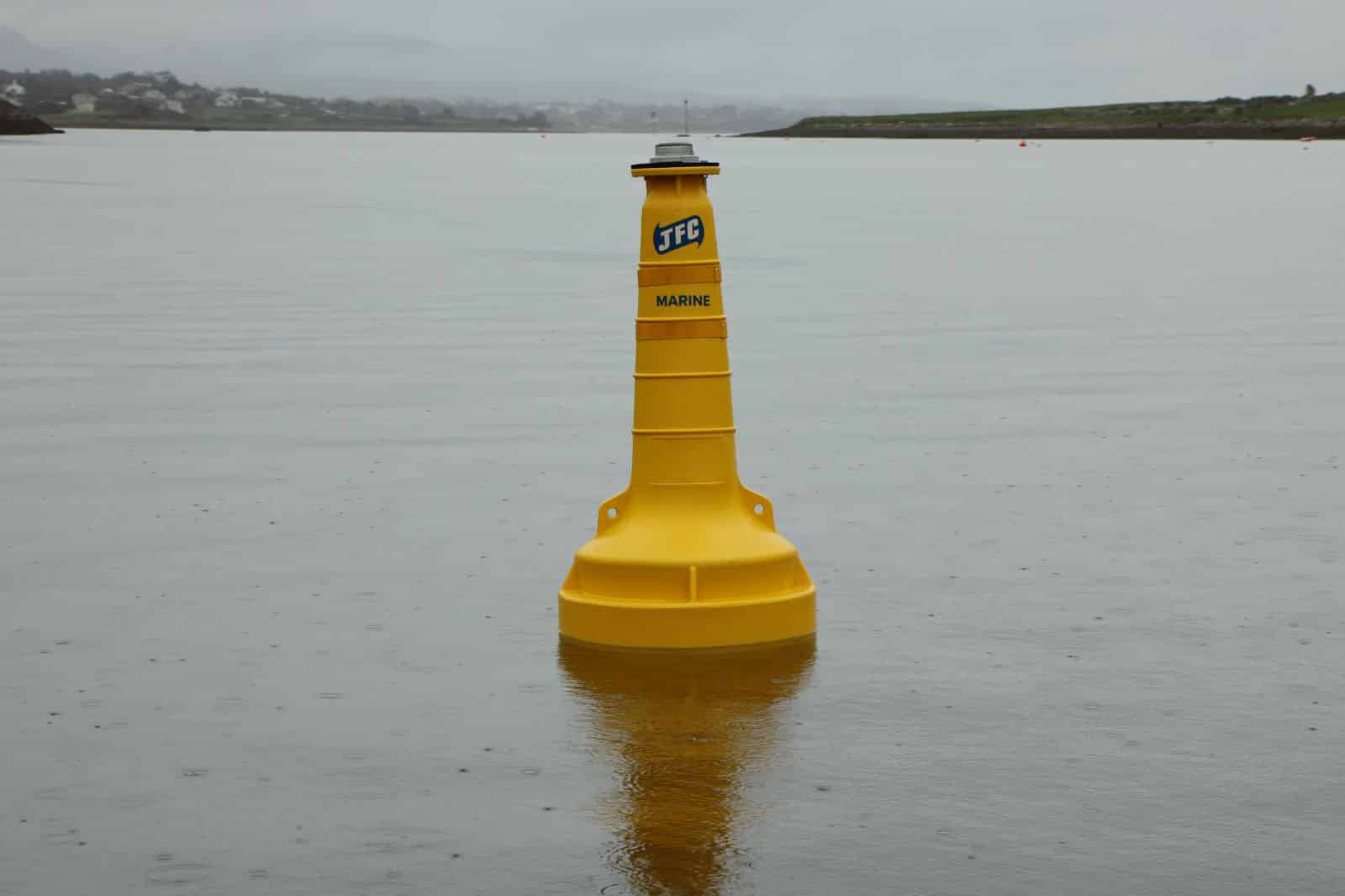

The NAV01 navigation buoy is used for shallow water installations ideal for marking temporary construction areas and racing marks.
Manufactured from strong durable polyethylene, the NAV01 is foam filled with internal ballast for additional strength and durability. Small and lightweight, it has a pillar design with a nominal focal height of 1000mm. The NAV01 is fitted with two lifting eyes for ease of manoeuvrability during installation or servicing.
Features & Benefits
- Manufactured from marine grade (UV stabilised) virgin polyethylene
- Small and lightweight, easy to handle.
- Buoy can be fitted with a M550 or M660 Lanterns
- All fixings are 316 stainless steel.
- Fitted with lifting eyes for ease of installation and maintenance.
- All JFC Marine Buoys are manufactured using 100% recyclable material.
Certification
- Manufactured to ISO 9001 : 2015 quality assurance systems
- JFC Marine is a member of IALA (Association of Marine Aids to Navigation and lighthouse Authorities)
- JFC buoys and lanterns are manufactured in accordance with IALA guidelines
Specifications
Description: NAV01 Ø600mm Navigation Buoy
Diameter: 600mm
Nominal Focal Height: 1000mm
Overall Height: 1400mm
Nominal Draft: 350mm
Weight: 55kg
Lifting Eyes: 2
Mooring Eyes: 1
Colours: In accordance with IALA Maritime Buoyage System
Life Expectancy: Up to 20 Years
Lantern Options: M550, M660
