Features & Benefits
- The sectors are fully verified at Sabik photometric range prior to delivery
- Field installation is easy thanks to a rotation mechanism in the base
- Precision alignment, at site, can be done with a gun sight
- After installation sector alignments remain unchanged even if the LED optical unit is replaced
- Lantern can be delivered with an external weather cover
- The standard sector light is available as a 3 or 6 layer model
- Small area of uncertainty between the sectors, typically less than 0.5 deg
- Integrated flasher with day light switch and a controller equipped with a 16 ampere solar panel charger
- Programmable with Sabik standard IR programming devices
- The lantern can be equipped with remote monitoring, synchronization and optical feedback

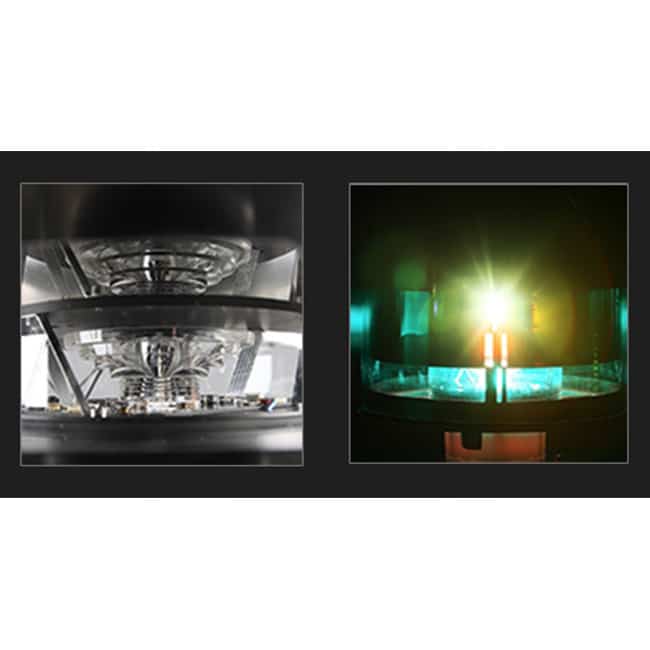

- Patented omni-directional led sector light technology
- Equipped with Bluetooth programming
Specifications
Range
6-10+ Nautical Miles
Dimensions
313mm to 586mm (H) 412mm Base (Ø)
Mounting Base 200mm (Ø)
Weight
3 Tier 10.5kg / 6 Tier 13.4kg / 12 Tier 22.4kg
Colours
